Smart PoE Power
Supports IEEE 802.3af/at standard, delivering up to 30W per port.
POE

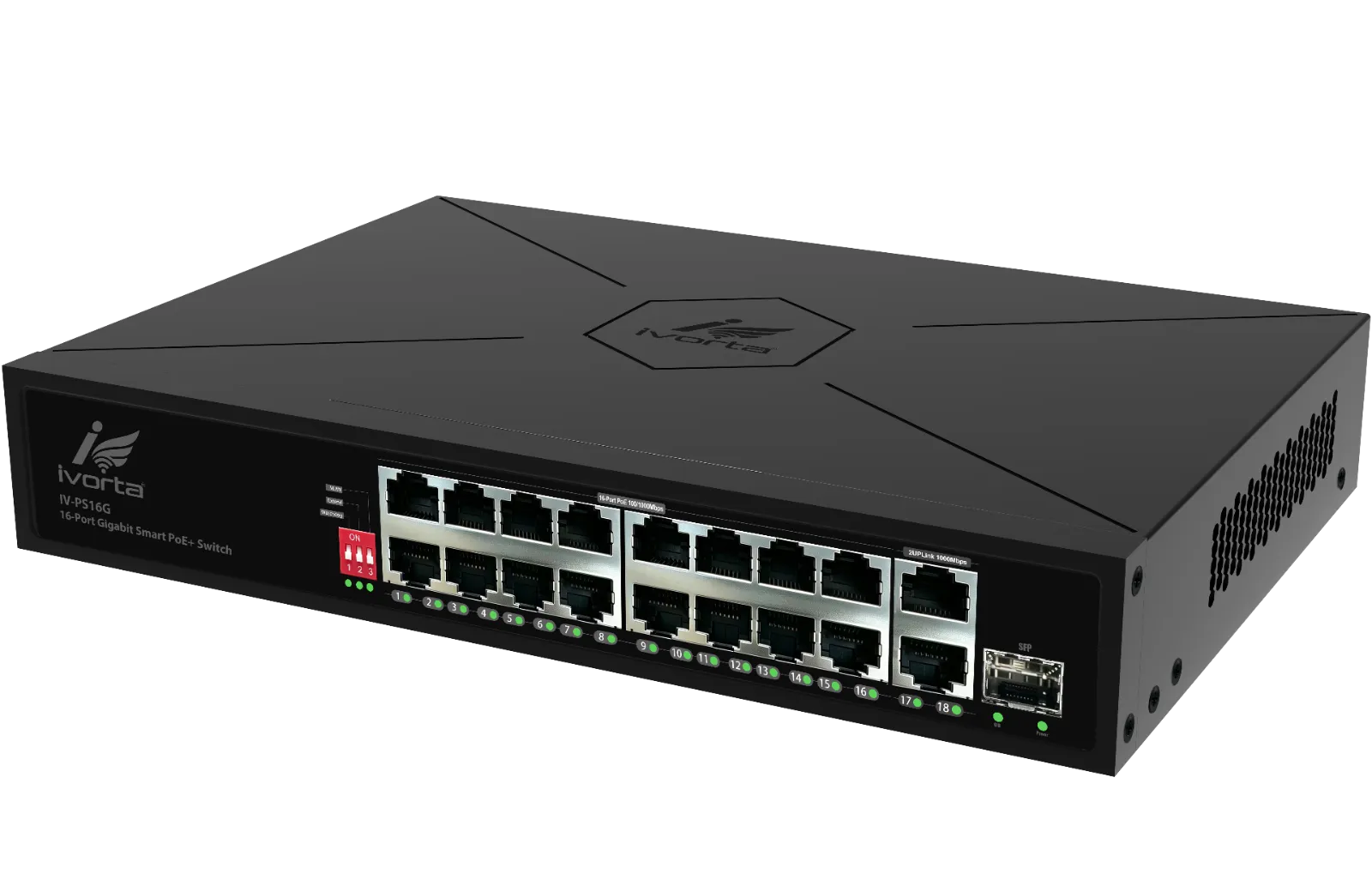

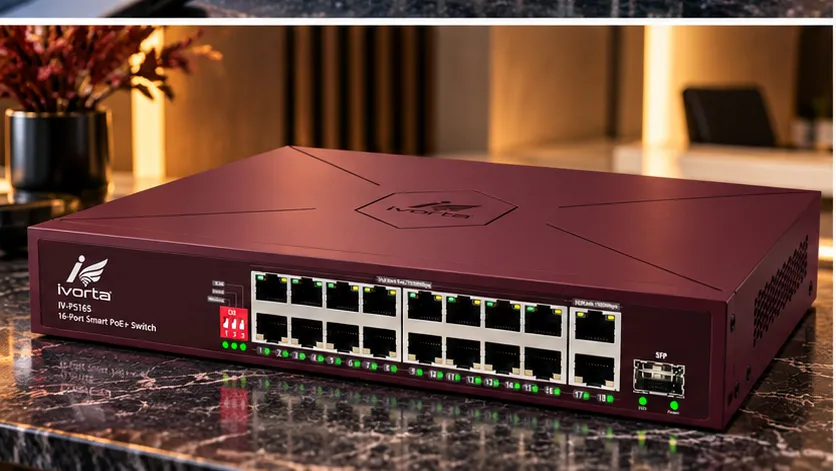

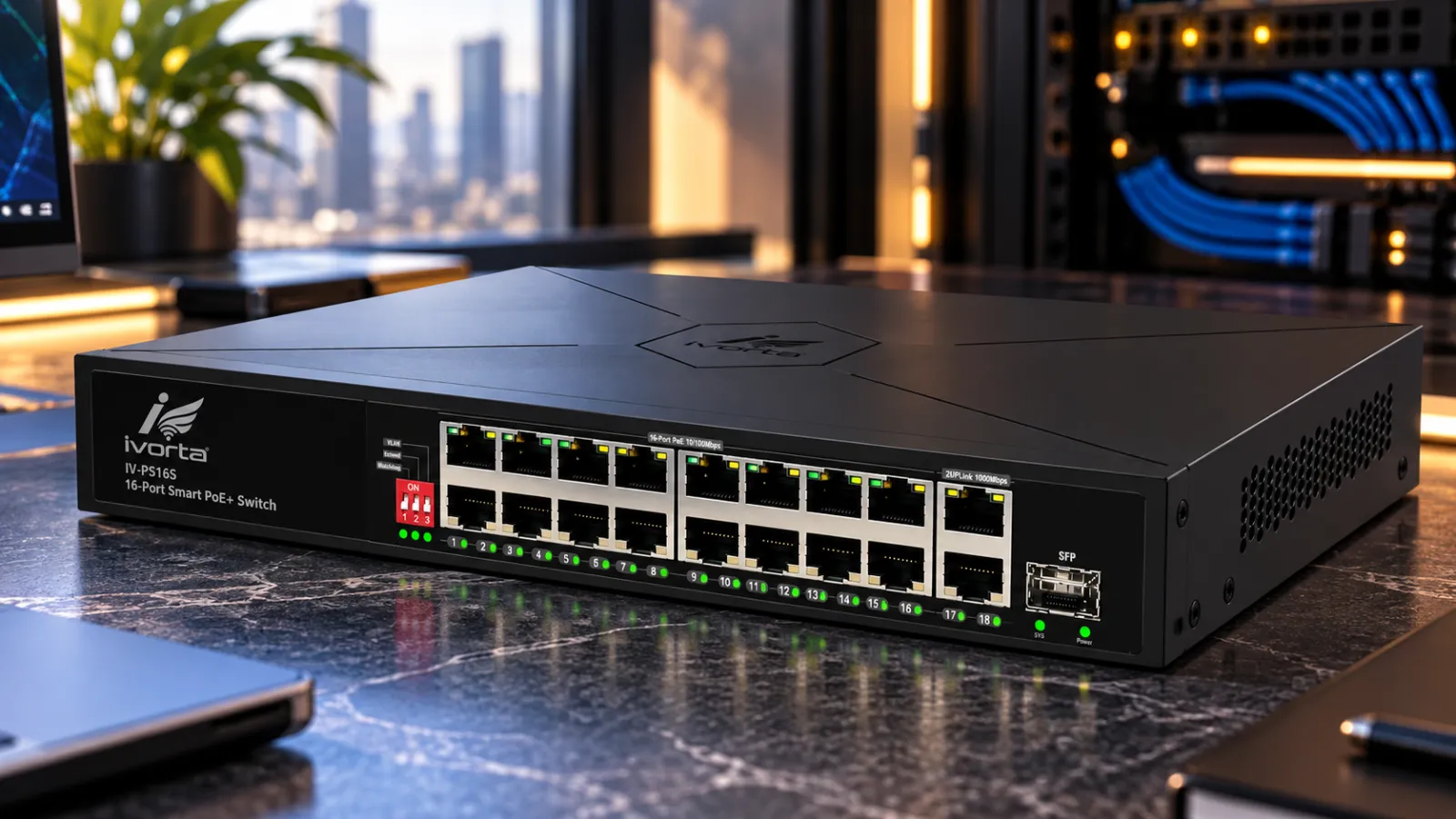

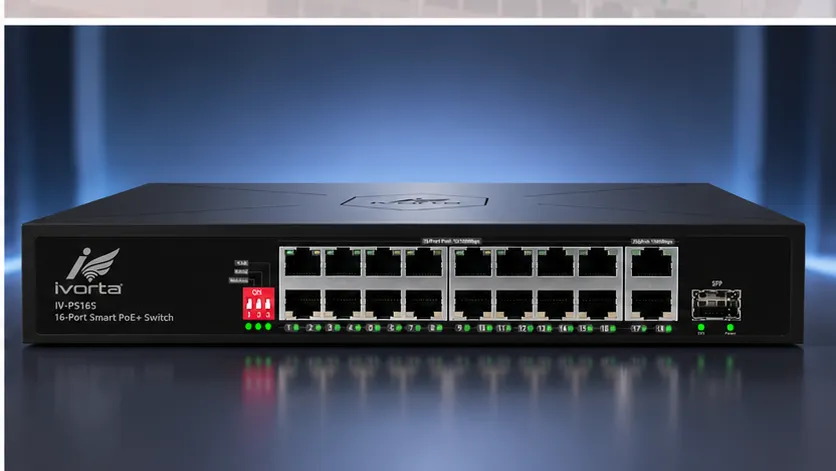

IV-PS16G 16-Port Gigabit Smart PoE+ Switch
Specifically designed to meet versatile PoE power needs
The IV-PS16G 16-Port Gigabit Smart PoE+ Switch delivers powered access for cameras and APs with sixteen 10/100 Mbps IEEE 802.3af/at PoE+ RJ45 ports, two Gigabit uplink RJ45 ports, and one Gigabit SFP uplink. Up to 30 …
Color: Black
1× 10/100/1000 MbpsIV-PS16G
portsIEEE802.3af/at
16 port2 Gigabit
≤ 250mswitch
Free Shipping
2-Year Warranty
Tech Support
IV-PS16G dual Gigabit uplink RJ45, and one Gigabit SFP.
Enjoy every moment with higher speed, lower latency, and a more stable connection.
IV-PS16GTotal Speed
PortMulti-Port
≤250mHigher Capacity
Explore Technology →
Gigabit Uplink & High Speed
lightning-fast data processing capabilities, making data transfer smoother.
Long Distance
DIP switch for stable data and power up to 250m.
VLAN & Plug and Play
One-click VLAN isolation for security. Auto-sensing PoE.

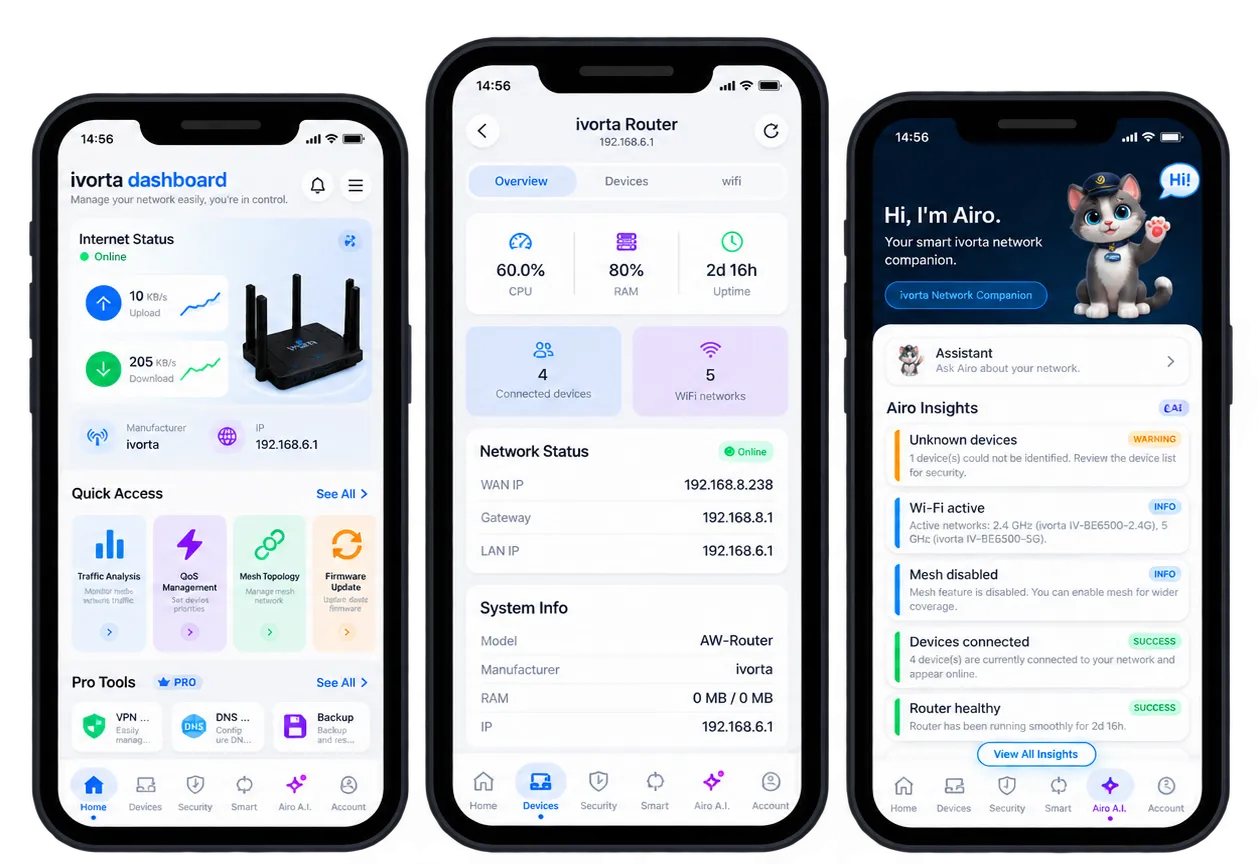

Easy Management with Smart App
Manage your network from anywhere with the IVORTA app: device control, parental controls, speed tests, and more.
Strong Connection Everywhere
Seamless performance at home, office, and travel.
| Model | IV-PS16G |
| Product name | 16-Port Gigabit Smart PoE+ Switch |
| PoE ports | 16× 10/100 Mbps, 802.3af/at (PoE+) |
| Uplink | 2× 10/100/1000 Mbps RJ45 |
| SFP | 1× 10/100/1000 Mbps |
| PoE / port | 30 W max |
| PoE total | ≤ 250 W |
| PoE distance | ≤ 250 m (mod 2) |
| Backplane | 9,2 Gbps |
| MAC table | 4K |
| Power | AC 110–160 V, 50/60 Hz |
| Dimensions | 270×185×45 mm |
| Weight | 1.3 kg |
| Operating temp | −10°C~55 °C |

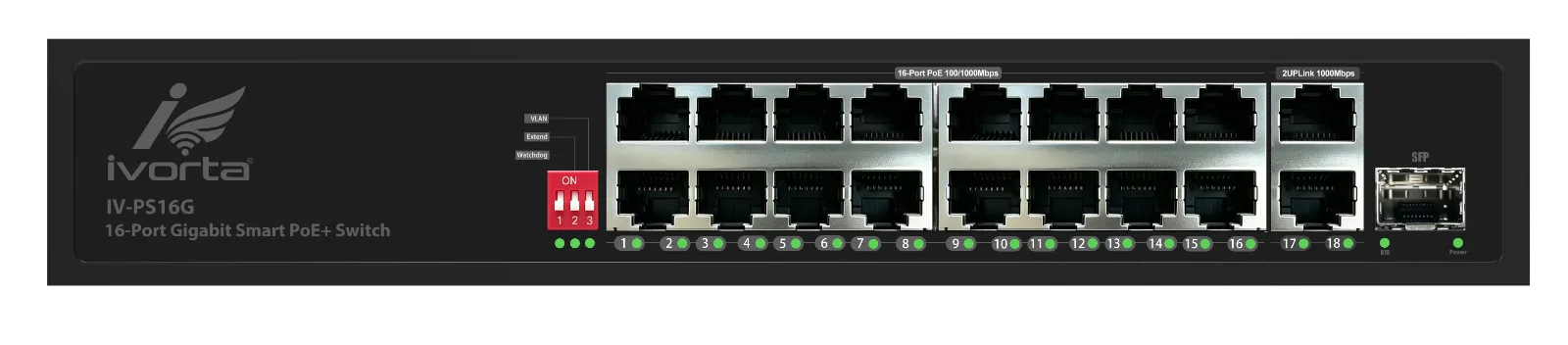

Ports
- AC110-160V
- SFP
- RJ45
- Reset
- Reset
| Dimensions | 270×185×45 mm |
| Weight | 1.3 kg |
